От CAT6 до PoE: правильный выбор устройства защиты от перенапряжения RJ45 для вашей сети
2025-08-12
В современном мире с гиперсвязью защита вашей инфраструктуры передачи данных не подлежит обсуждению. Сетевой фильтр RJ45 - это первая линия защиты от опасных скачков напряжения на линиях Ethernet. Независимо от того, управляете ли вы развертыванием сети campus CAT6 Ethernet, используете гигабитную магистраль или подключаете IP-камеры к сети Power over Ethernet (PoE), установка правильного устройства защиты от перенапряжения Gigabit Ethernet SPD (Surge Protection Device) может сэкономить оборудование, предотвратить простои и снизить затраты на техническое обслуживание.
D-05/RJ45

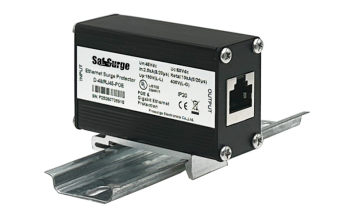

D-05/RJ45B
Why You Need CAT6 Ethernet Surge Protection
Every Ethernet link—especially those spanning outdoor runs or industrial zones—is vulnerable to transient overvoltages caused by lightning strikes, switching operations, or electrostatic discharge. Unprotected RJ45 ports can translate a single surge event into damaged network switches, routers, VoIP phones, or building automation controllers. An inline RJ45 surge protector diverts surge energy away from sensitive electronics, ensuring network uptime and equipment longevity.
Key Specifications of Safesurge D 05/RJ45 Series
Safesurge’s D 05/RJ45 single port SPD meets the rigorous demands of modern Ethernet installations:
- CAT6 Compliance & High Bandwidth
Supports Class E structured cabling up to 250 MHz, fully capable of Gigabit Ethernetat 1,000 Mbps with minimal insertion loss (≤ 3 dB) and ultrafast response (≤ 1 ns). - Two Stage GDT/TVS Technology
Combines a three pole gas discharge tube (GDT) with high speed transient voltage suppressor (TVS) diodes. Handles up to 10 kA (8/20 µs) nominal discharge current and 1 kA (10/350 µs) lightning impulse current, delivering superior TVS diode surge protection. - Safety & Standards
CE marked, and compliant with IEC/EN 61643 21 (D1, C1–C3) as well as ANSI/IEEE C62.41 Category B/C locations. Ensures peace of mind under standard surge test conditions. - PoE Ready Variants

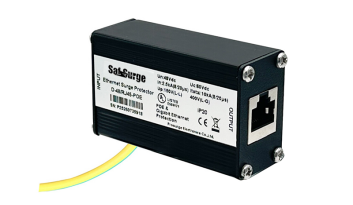

For PoE applications, the D 48/RJ45 POEseries protects both data and DC power lines up to 60 V, fully compatible with IEEE 802.3af/at/bt PoE standards. Ideal as a PoE surge suppressor for cameras, access points, and IoT devices.
Advanced TVS Diode Surge Protection
Safesurge SPDs leverage TVS diode surge protection for rapid clamping of voltage spikes, safeguarding against fast rise transients. The first GDT stage absorbs high energy surges, while the secondary TVS diodes clamp residual overvoltages to safe levels within nanoseconds—critical for sensitive Gigabit PHYs.
Applications & Deployment Scenarios
1. Enterprise LANs & Data Centers

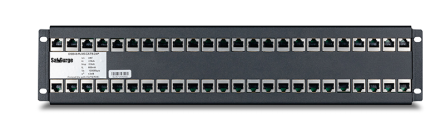

Protect edge switches, core routers, and patch panels. For 19″ rack installations, consider the 24 port D 05/RJ45 24P bay mount SPD for centralized surge defense.
2. Outdoor & Harsh Environments

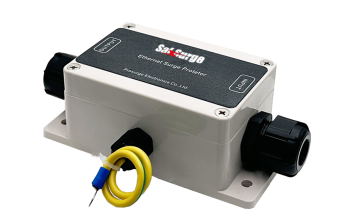

Use the IP66 rated D 05P/RJ45 single port protector with waterproof enclosure for rooftop radios, outdoor PoE cameras, and industrial Ethernet links.
3. Security & Surveillance
Ensure continuous operation of IP cameras, NVRs, and networked sensors with dedicated Ethernet surge protector modules at both ends of cable runs.
4. Telecom & ISDN Systems
Ideal for protecting modems, VoIP gateways, and PBX interfaces against indirect lightning strikes and line cross protection.
Installation Best Practices
• Placement: Install surge protectors as close as possible to the protected device’s RJ45 port. For long cable runs, protect both ends to minimize induced surges.
• Grounding: Use a dedicated, low impedance earth connection (≤ 50 cm, ≥ 2.5 mm² conductor) directly to the SPD’s grounding point.
• Separation: Keep surge protected and unprotected cables in separate ducts or compartments to reduce coupling.
• Regular Inspection: Check SPD status indicators (if available) and earthing integrity during routine maintenance.
Conclusion
Investing in a Safesurge RJ45 surge protector is a proactive step towards uninterrupted, reliable network performance. Whether you need CAT6 Ethernet surge protection for corporate LANs, a high performance Gigabit Ethernet SPD for data centers, or a robust PoE surge suppressor for IP devices, Safesurge offers a comprehensive portfolio to meet your most demanding requirements.
